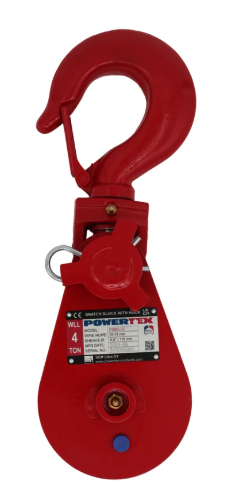

The POWERTEX PSBH-S2 snatch block with hook is a heavy-duty snatch block that can be used for temporary or permanent lifting and pulling installations. The block can be used to redirect a wire rope or increase the load that a wire rope winch arrangement could handle in a straight loading without a block.
The wire rope is easily inserted by removing the hair needle pin, unwinding the quick bolt and turning the side plate.
Features:
Safe - each snatch block is proof load tested 2 x WLL and examined in the factory prior delivery
Safe - the quick bolt is designed to be positively held in place also when the block is open
Safe - the swivel assembly is designed to be securely locked also when the block is open
Durable - forged/machined precision sheaves
Conical roller bearings (8t and up) or bronze bearings (2t and 4t)
2 grease nipples for quick maintenance of moveable parts
Forged swivel hook with safety latch
Sturdy side plates that protect the moveable parts
Identification plate made of metal instead of sticker
RFID equipped (chip) for easy service, inspection and asset control
Marked with QR code to allow access to user manuals at any time
2.2 Test certificate and Declaration of conformity delivered with each block
14 language user manuals delivered with each block
QR code for on-site access to multilanguage user manuals
Fulfills Machinery Directive 2006/42/EC
Safety requirements conform to EN13157 and AS 2089
Material: Robust steel construction
Marking: CE-marked, POWERTEX, Model, WLL, Manufacturing date and Serial number, UKCA
Temperature range: -20°C up to +50°C
Finish: Red painted
Safety factor: 5:1
